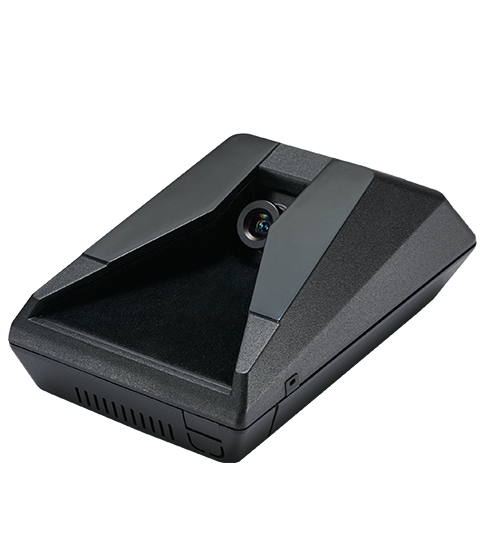

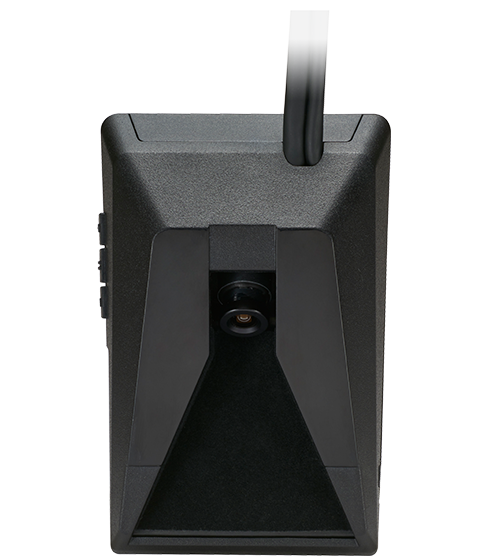

MDAS-9 is one of the world’s most trusted ADAS solutions, certified by global standards. By detecting vehicle speed and turn signals, it supports safer driving decisions and helps keep your vehicle on the safest path on the road.
ADAS(Advanced Driver Assist System)
detects vehicles and pedestrian ahead
and alerts with visual & haptic vibration
to prevent traffic accidents and to keep
the drivers safe

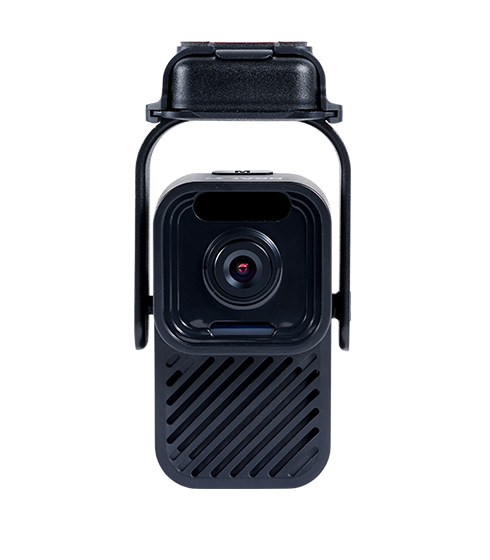

Drowsiness alert is based on tracking driver’s eyeballs and when the closed eyes in certain circumstances are detected. Distraction alert implements when the driver’s facial direction is facing in certain viewing angle in certain circumstances.

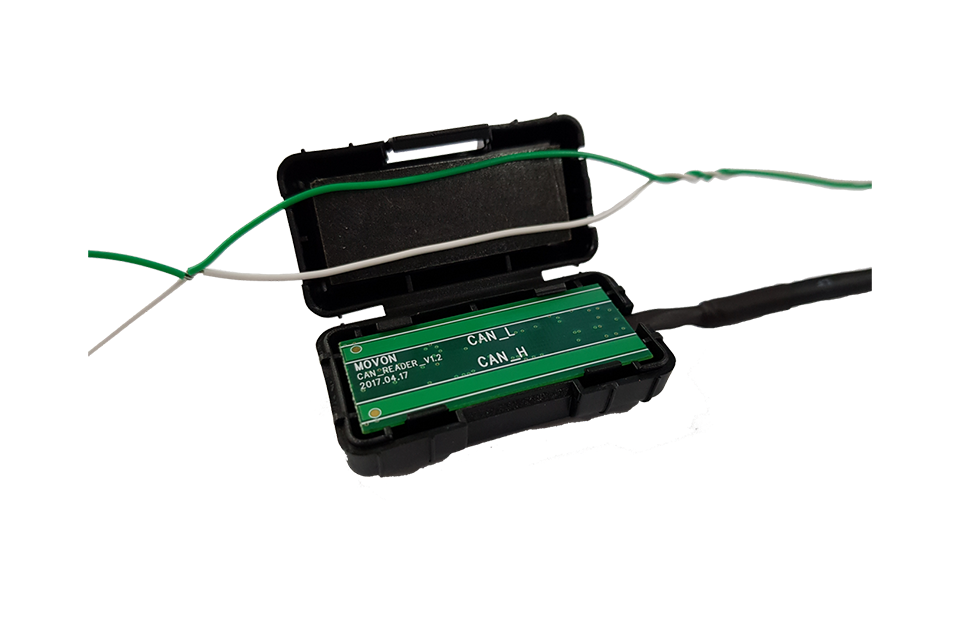

MDAS-9 supports contactless CAN reader unit that allows no unnecessary car damage during installation and flawless Rx transmission from the vehicle to the device.
Supports Front Vehicle Start Alarm(FVSA), Forward Proximity Warning(FPW), Pedestrian Collision Warning(PCW) incl. e-Scooter

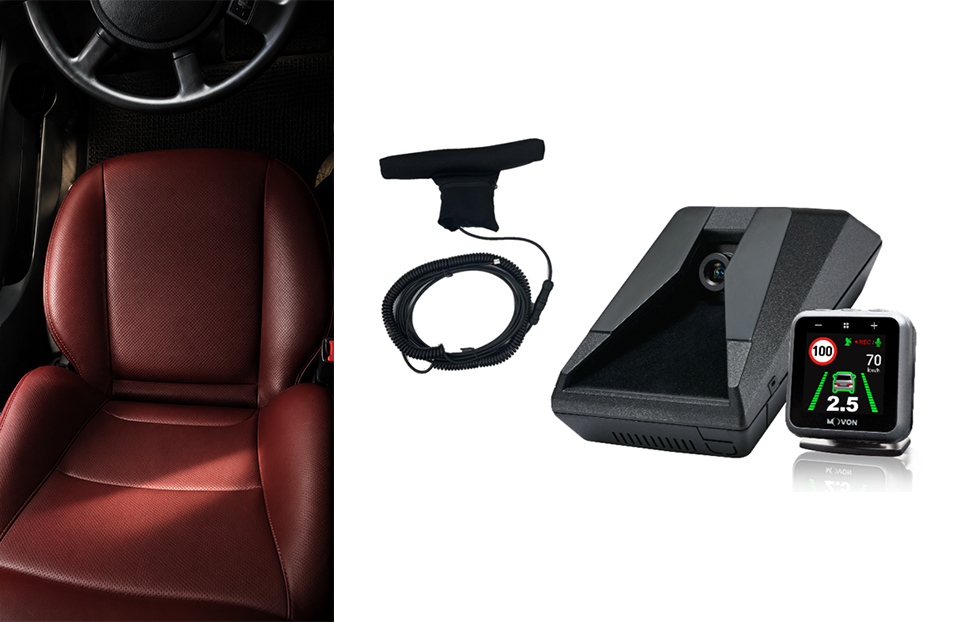

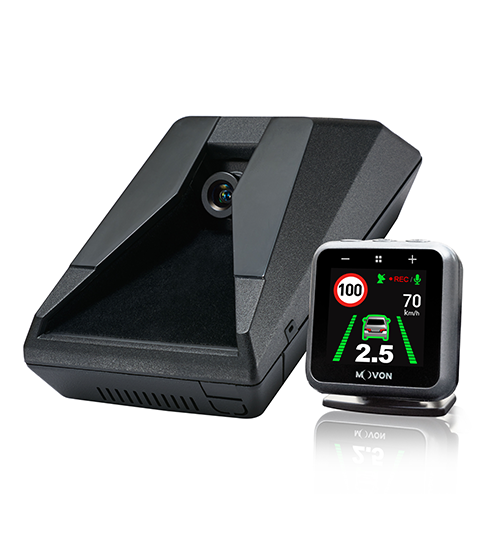

Powered with Audible, Visual, and Haptic Alarm options, MDAS-9 gives warning to drivers whenever unsafe objects are detected ahead. MDAS-9 indicator presents the TTC (Time To Collision) information to the drivers to maintain the safety distance.
| CPU | Cortex A7 Quad-Core |
|---|---|
| Audio Out | Speaker |
| Camera | Front | 1280 x 720 (HD) Rear | 1280 x 720 (HD) |
| Power | DC 10V ~ 36V |
| Format | Video AVI (h.264 codec) Audio PCM |
| Storage | 8~128GB Micro SD card support |

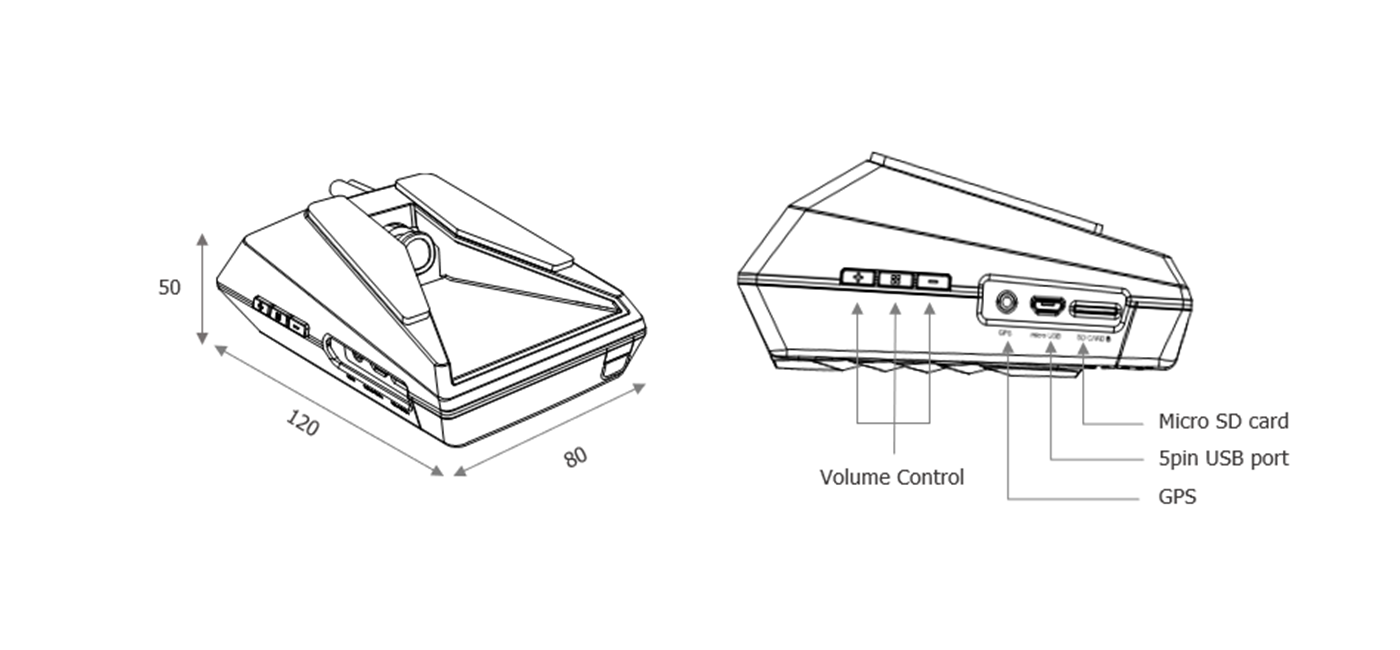

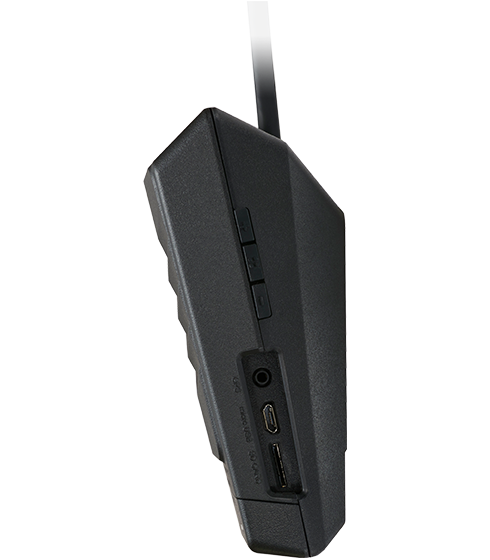

| Input / Output | Main unit | Micro 5pin USB port, Micro SD card, GPS PCI Box | Video out, CAN, Power, Fusw, Vibrator, Indicator, FMS |
| Temperature | Operation | -20 °C ~ 70°C (-4 ℉ ~ 158 ℉) Storage | -40 °C ~ 85°C (-40 ℉ ~ 185 ℉) |
